Sol-Ark – SA-12K
$8,568.97
Engineered for Maximum Energy Control & Resilience
-
12 kW continuous AC power, with seamless grid/off-grid switching at 4 ms
-
Dual MPPT channels, 13 kW max PV capacity, and 150–425 V tracking range
-
High efficiency: 96.5%–97.5% peak, 96.0% battery charge efficiency
-
Battery-agnostic 48 V support with 185 A charger, works with lithium or lead-acid packs Integrated protections: UL1741, IEEE 1547, rapid shutdown, arc fault, lightning protection; IP65/NEMA 3R outdoor rating
-
Compact & sturdy: 78 lb, 30″ × 18.3″ × 10″ enclosure; includes touchscreen, Wi‑Fi/LAN, auto generator start

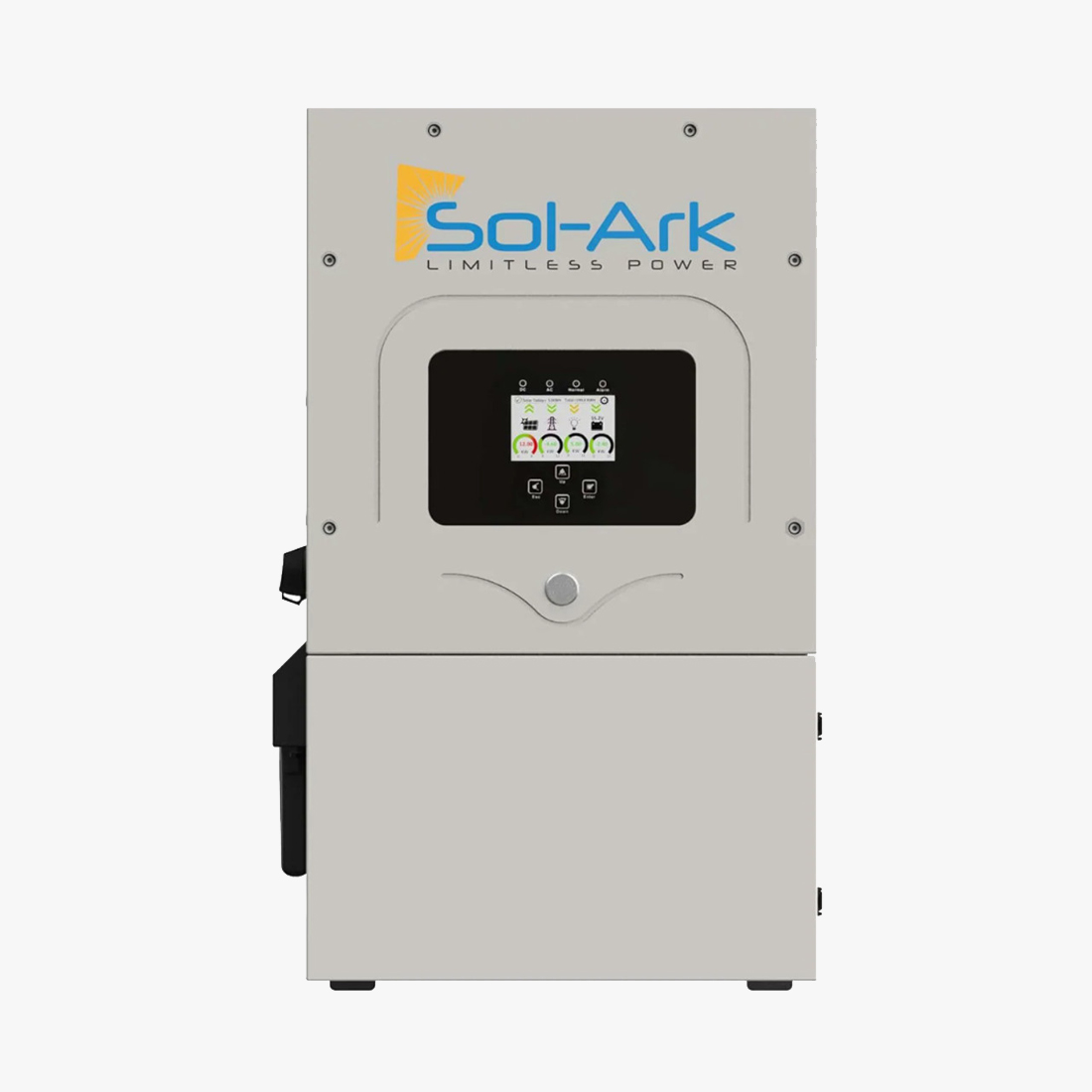

Hybrid Inverter Sol‑Ark SA‑12K
A high-powered 12 kW hybrid inverter built for grid-tied, off-grid, and backup systems with seamless dual-MPPT solar input and robust battery integration. Rugged and feature-rich, it’s designed for residential or light commercial use with industry-leading efficiency and reliability.
Product Specs
