Authentic Sine Wave Inverter – Provides clean, stable power for sensitive electronics.
-
Adaptive Charging – Optimizes charging efficiency with a four-stage adaptive process.
-
Hybrid PowerAssist Technology – Boosts capacity of generators or shore power by integrating battery support.
-
Versatile System Integration Features – Seamlessly integrates with various energy sources and systems.
-
Two AC Outputs with No-Break Functionality – Ensures continuous power for sensitive devices, with less than 20ms transition during grid failure.
-
Second Output Active When AC Input is Present – Prevents battery drain by using AC power for non-critical loads.
-
Virtually Limitless Power via Parallel Operation – Supports up to six units for virtually unlimited power capacity.
-
Three-Phase Capability – Achievable with three units for large-scale power applications.
-
Split-Phase Options (120-0-120 V) – Provides flexible power configurations for different applications.
-
Power Control – Prevents generator or shore supply overload by managing excess power for charging.
-
PowerAssist – Enhances alternative power sources by supplementing with battery power during peak demands.
-
Four-Stage Adaptive Charger – Provides efficient charging with fine-tuned stages for battery health.

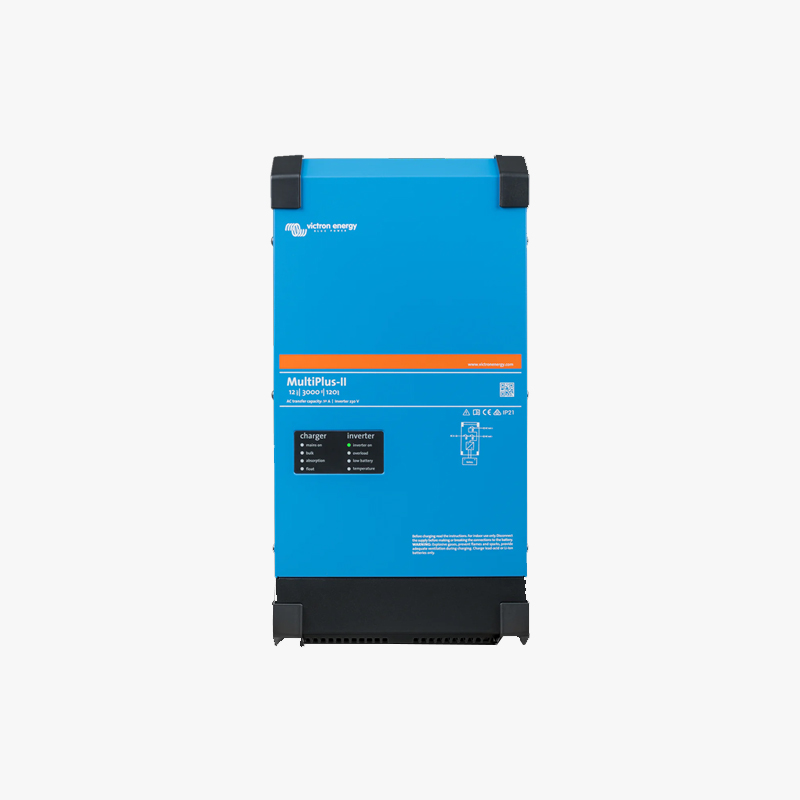

MultiPlus-II 12/3000/120-50 120V (UL 458)
$1,394.87
-
PowerAssist: Prevents overloading of AC sources like generators by adjusting battery charging and providing a power boost when necessary.
-
Uninterrupted AC Power (UPS Function): Provides seamless transition to battery power within 20 milliseconds during grid or power source failures, ensuring continuous operation of sensitive electronics.
-
Energy Storage Systems (ESS): Offers flexibility for integrating MPPT Solar Chargers and Grid-tie PV Inverters, making it ideal for solar energy and grid-tied power systems.
-
Solar Energy Solution: Works with both off-grid and grid-connected PV systems, ensuring uninterrupted power availability in solar energy setups.
-
Dual AC Outputs: Primary output for seamless power transfer during grid failures, while the second output is for non-battery-discharging loads (e.g., water heaters).
-
Parallel Operation & Flexibility: Supports parallel, split-phase, and three-phase configurations. Up to 6 units can be connected for higher power output and charging capacity.
-
On-Site Configuration & Monitoring: VEConfigure software simplifies on-site adjustments, making system configuration, monitoring, and control quick and easy.
-
Remote Access: Connects to the internet via Color Control GX for remote monitoring and control, enabling adjustments from anywhere via the Victron Remote Management (VRM) website.
Next-Level Power Control with MultiPlus-II
The MultiPlus-II combines the capabilities of both MultiPlus and MultiGrid devices, offering all the features of the MultiPlus with added flexibility. It includes an external current transformer option, enabling PowerControl and PowerAssist for optimized self-consumption through external current sensing (up to 32A).
Additionally, the MultiPlus-II includes all the advanced features of the MultiGrid, plus an expanding list of country-specific certifications and built-in anti-islanding protection for enhanced safety and compliance.
